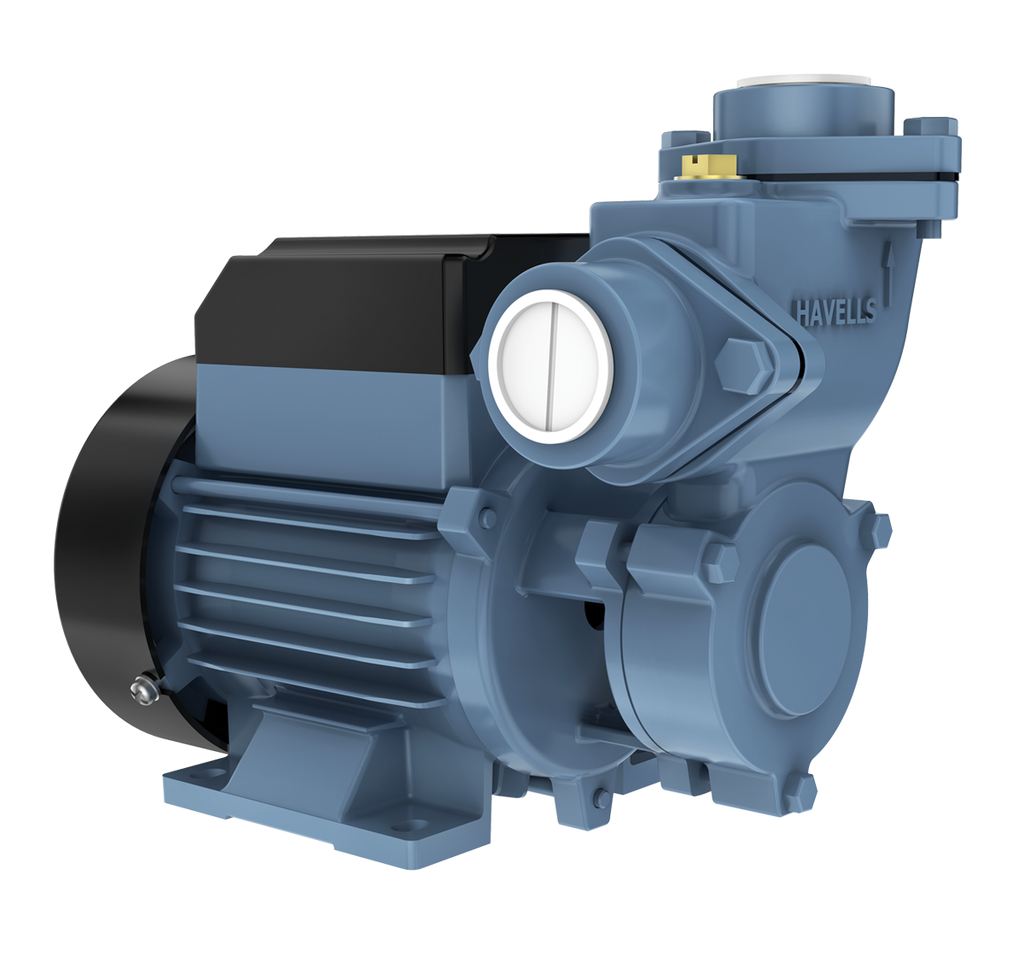

Description
0.75 kW (1.0 HP)
Capacity / Power
1.0 HP
Energy Efficient Motor
Motors are with F Class Insulation, which ensures that motor does't get burned and works smoothly even at high temperatures.
Pump Performance
Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range.
 Motor Insulation Class-F:Motor design is compact. Motor temperature withstand capacity increases upto 155 .°C It protects motor from winding burning due to wide voltage fluctuations resulting in high temperature increase. Most of the pumps available in market are with B-Class insulation, which provides insufficient protection. |
 IP-54 Protection:Pump can be used in outdoor application. Pump is protected from dust particles entering into motor. Motor is safe even from water splashes and motor is protected from burning. Pumps available in market are with IP 44 protection which is not suitable for outdoor application of pump. |
 Motor Windings:Dual coated F Class copper winding wires gives high motor efficiency. Winding wires can withstand high temperature and motor winding is protected from burning. Most of the pumps available in market have ordinary enameled copper wire or aluminum wire windings making them inefficient. |
 Pump Shaft:Stainless Steel Shaft (SS-410) of the pump set protects the pump shaft from rusting due to hard water. Hard SS shaft has less wear and tear providing longer life to pump. Other pumps available in market have EN-8 shafts, which get rusted easily and have shorter life in hard water. |
 Pump Casting:High Grade Pump Castings (FG-200 grade) ensures very slow rusting of pump. Pump life is increases due to less rusting and wear and tear. Most of the pumps available in market have low grade castings, which causes rusting of pump parts. |
 Pump Seal:High quality mechanical seal has long life. It completely seals and prevents the water entering into the motor side. It works for longer period with lesser wear and tear. |
 Impeller:Forged Brass Impeller is very hard. Wear & tear of the impeller is highly reduced. This results in better pump performance even after many years. Other make of pumps have brass impellers and wear out fast due to partcles in water. |
 Home Service:Home service of the pumps assures trouble free service. |
TECHNICAL SPECIFICATION
| Suitable for | Single Phase supply |
| Applications | Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation |
| Operating water temperature | up to 65 °C |
| Maximum working pressure | 3.8 kg/cm² |
| High suction with self priming | up to 7.5 m |
| Low power consumption | Yes |
| Pipe size | 25 mm x 25 mm (2.5 cm x 2.5 cm) |
| Motor speed | 2900 Revolution per minute |
| Motor body | High-quality aluminium extruded body |
| Motor stator | Low watt loss silicon steel lamination |
| Winding type | Copper winding |
| Direction of rotating | Anti-clockwise when viewed from driving end |
| Dynamically balanced rotor | Yes |
| Pump casing | Graded Cast Iron |
| Impeller | Forged brass |
| Shaft | EN-8 |
| High quality mechanical seal | Yes |
| Rated power input (kW) | 0.75 kW |
| Power (HP) | 1 HP |
| Voltage operating range (V) | 180 V to 240 V |
| Rated frequency | 50 Hz |
| Gross weight (kg) | 10.4 kg |
| Packaging Dimensions (cm) | 29.8 cm x 19.6 cm x 26 cm |
| Power supply cable | Yes |
| In built thermal overload protector | Yes |
| Motor insulation class | Class F |
